Line latency/Brush Lag during drawing with the software.

製品型番:Star 01,Star 02,Star 03,Star 04,Star G430,Star 05,Star 06,Star 06C,Star G540,Star 03 Pro,Star G640,Star G430S,Star G640S,Artist 10S,Artist 22,Artist 22E,Artist 16,Artist 13.3,Artist 15.6,Artist 16 Pro,Artist 22 Pro,Artist 22E Pro,Artist 12,Artist 15.6 Pro, Deco 01,Deco 03,Deco 02,Deco Pro S/M,Artist 13.3 Pro,Deco 01 V2,Artist 12 Pro,Star G960,Artist 22R Pro,Star G960S,Star G960S Plus,Artist 24 Pro,Deco mini4,Deco mini7,Innovator 16,Deco SW, Deco S,Deco mini7W,Artist 13.3 Pro Holiday Edition,Artist 22 (2nd Generation),Deco Fun,Deco Pro SW/MW,Artist Pro 16TP,Artist 24,Artist Pro 16, Artist 12 (2nd Generation),Deco LW,Deco L,Artist 13 (2nd Generation),Artist 16 (2nd Generation),Deco M,Deco MW,Artist 10 (2nd Generation),Artist 24 (FHD),Artist Pro 14 (Gen 2),Deco Pro (Gen 2) Series,Artist Pro 16 (Gen 2),Artist 13.3 V2

Check if the computer configuration (CPU&GPU) meets the recommended configuration requirements for the drawing software installed and optimize related functions via settings according to the FAQs posted on the official website of the drawing software.

Photoshop Fixes/Changes for example, other software can refer to similar settings

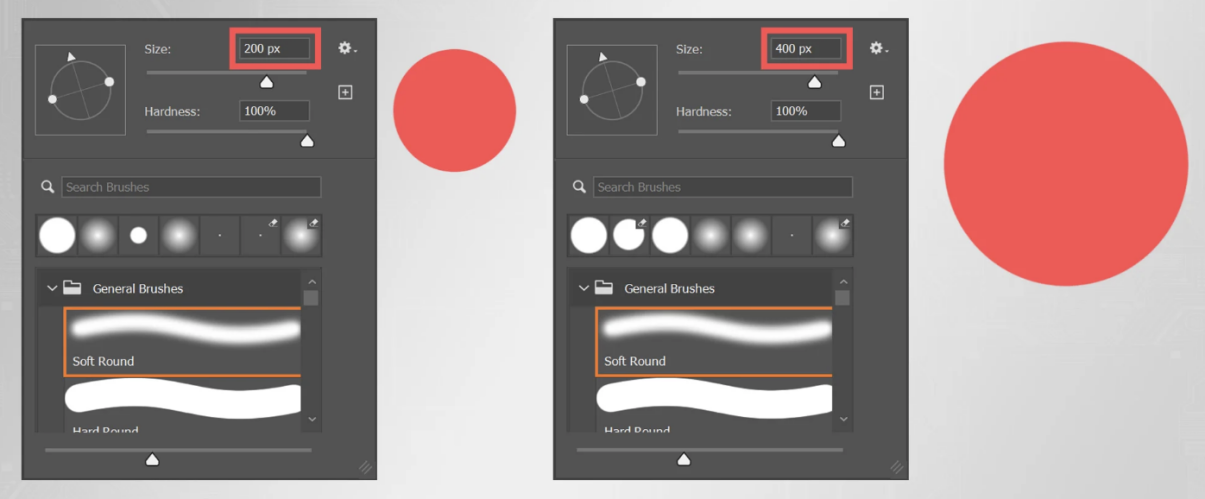

a)Reduce Brush Size

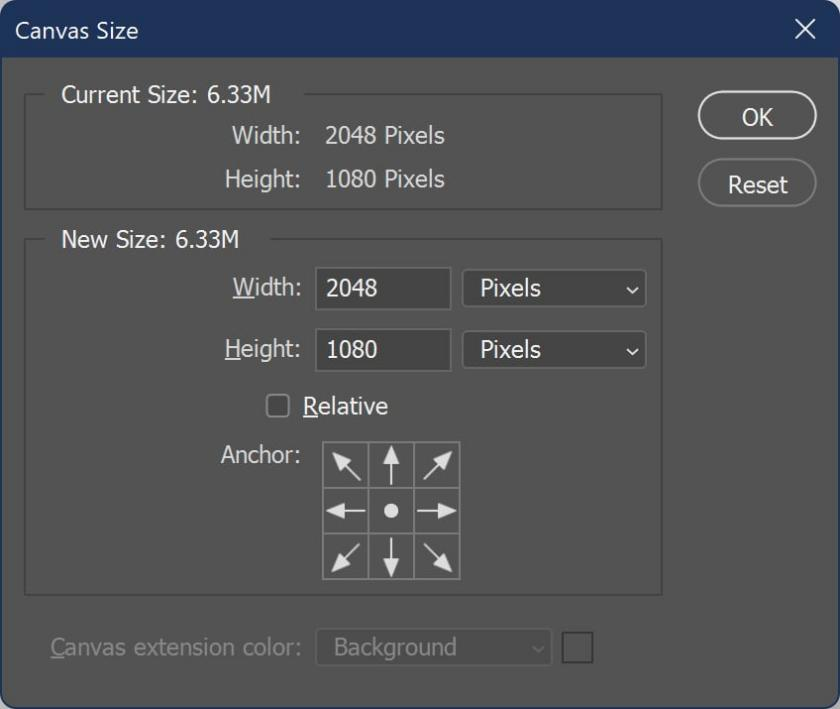

b) Reduce Canvas Size

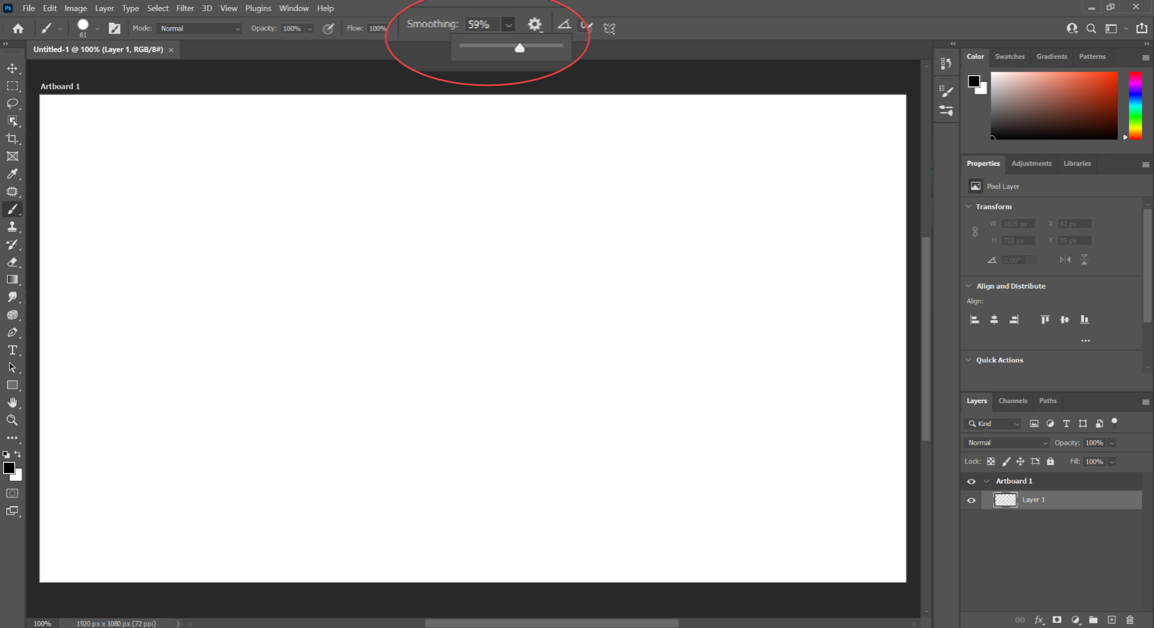

c) Reduce Brush Smoothing

The "Smoothing"setting in Photoshop slows down your stroke so that its easier to make clean strokes. But it also makes it appear like your stroke is lagging behind your cursor.

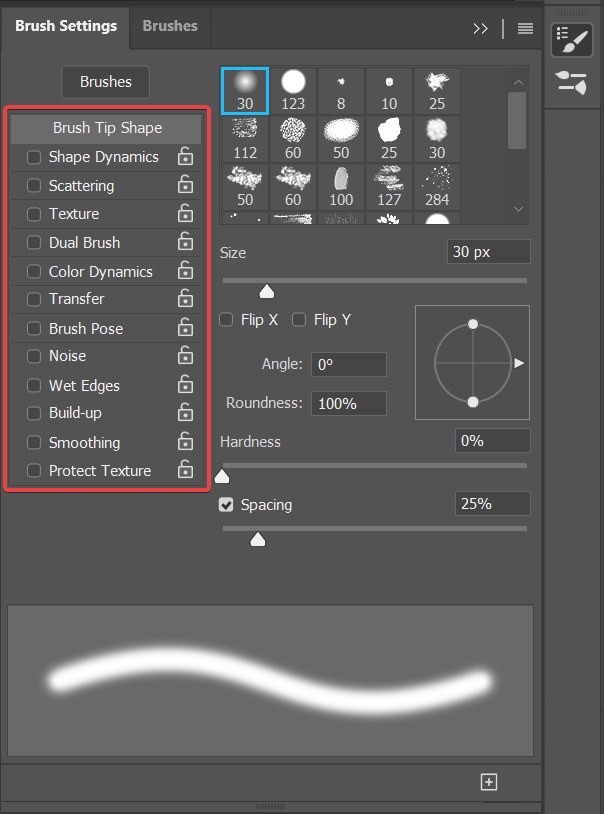

d) Reduce/Turn off Advanced Brush Dynamics

Brush dynamics are basically effects that you can apply to your brushes.

These effects can give them interesting patterns, interactions with colors, and many other things.

But they can also slow down your brushes because theyre essentially adding more steps between when you first click and when your stroke gets drawn.





e) Allocate More RAM to Photoshop

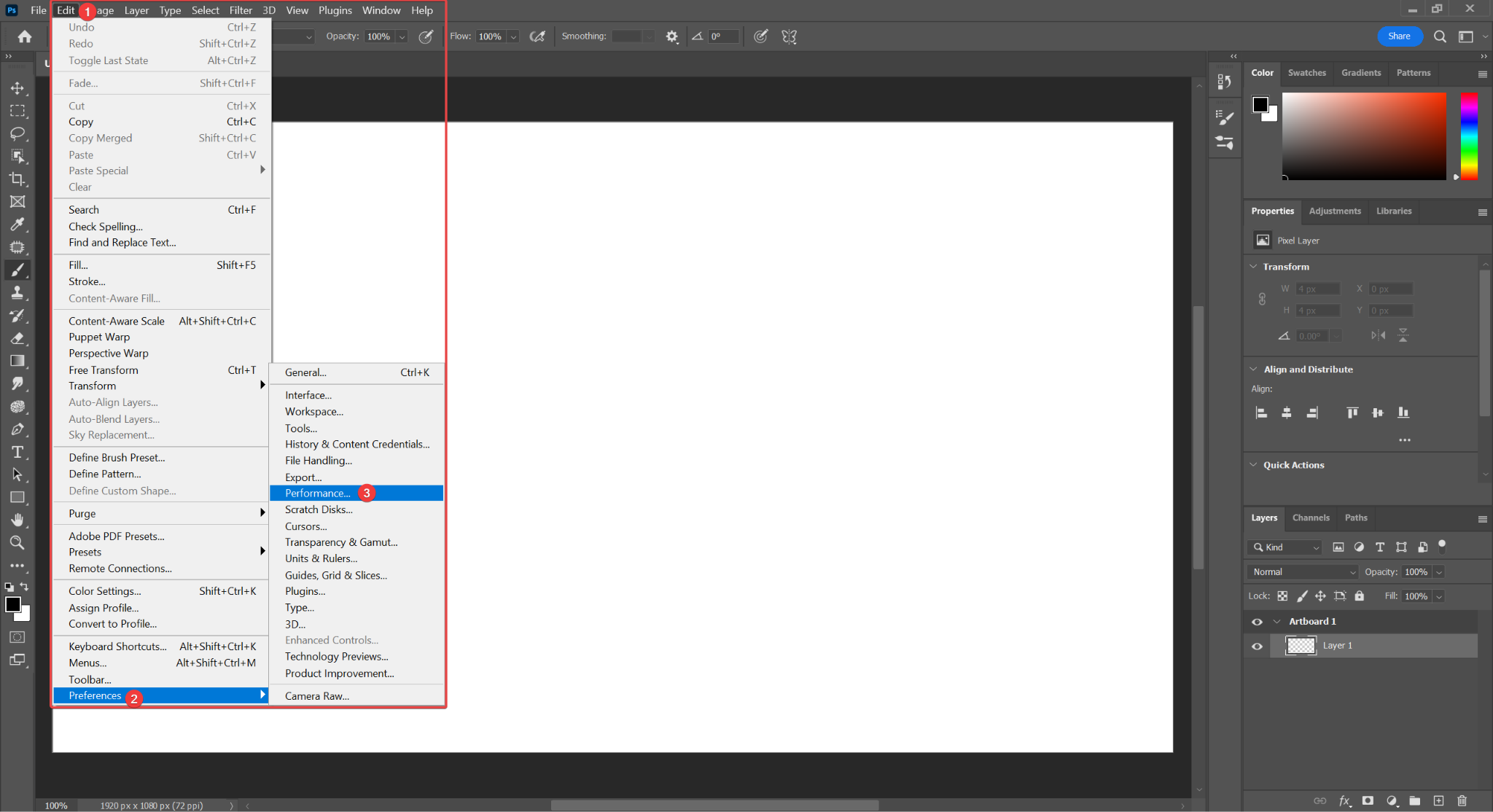

click on the "Edit" button on the top left, go down to Preferencesand then click on "Performance."



After that, you can adjust the amount of RAM you have allocated in the highlighted area.

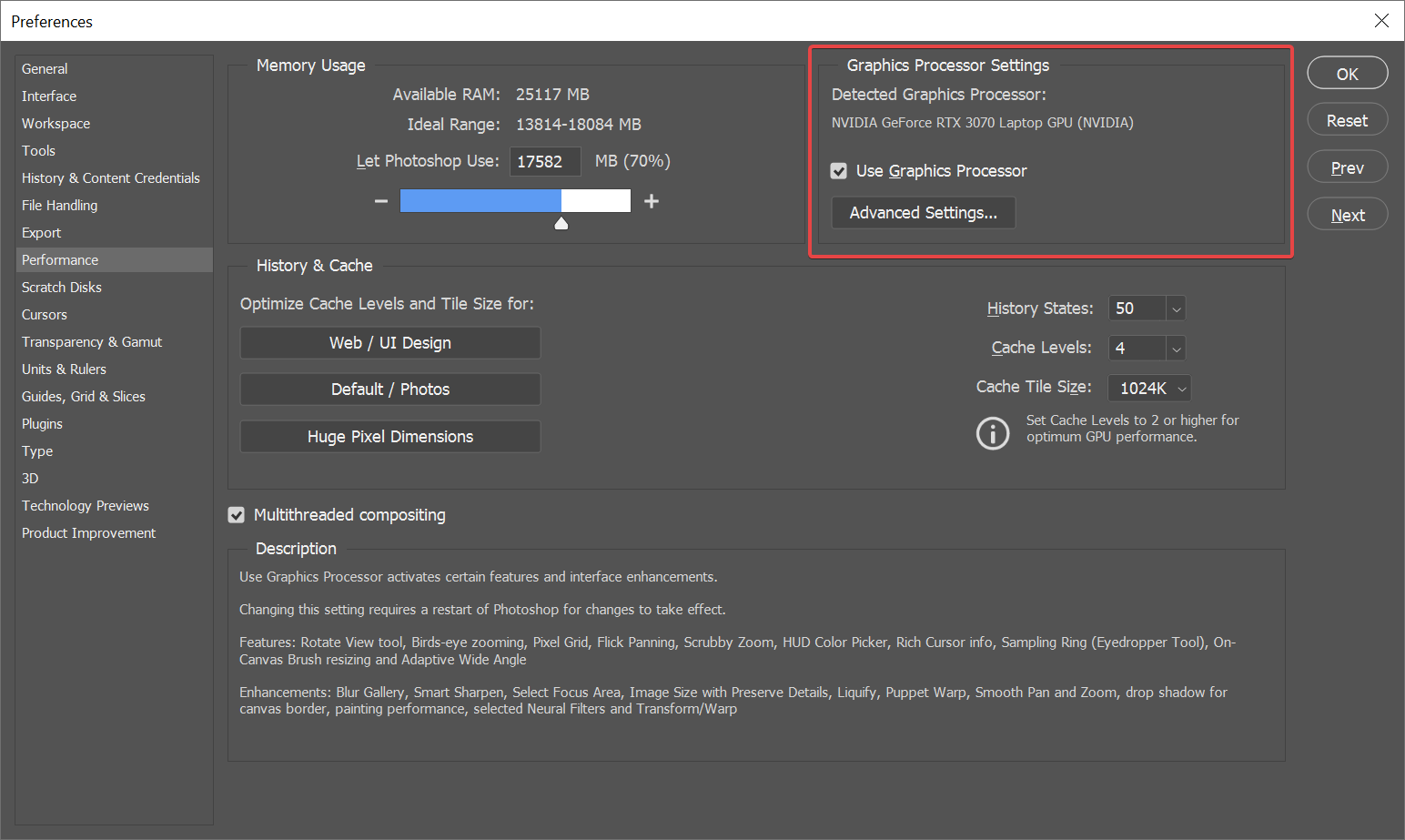

f) Make Sure Youre Using Your Dedicated GPU

First click on the Editbut on the top left, go down to "Preferences" and then click on "Performance."



After that, simply click on the "Use Graphics Processor" box, and you will begin using your GPU.



Restarting Photoshop after you first turn on the option.

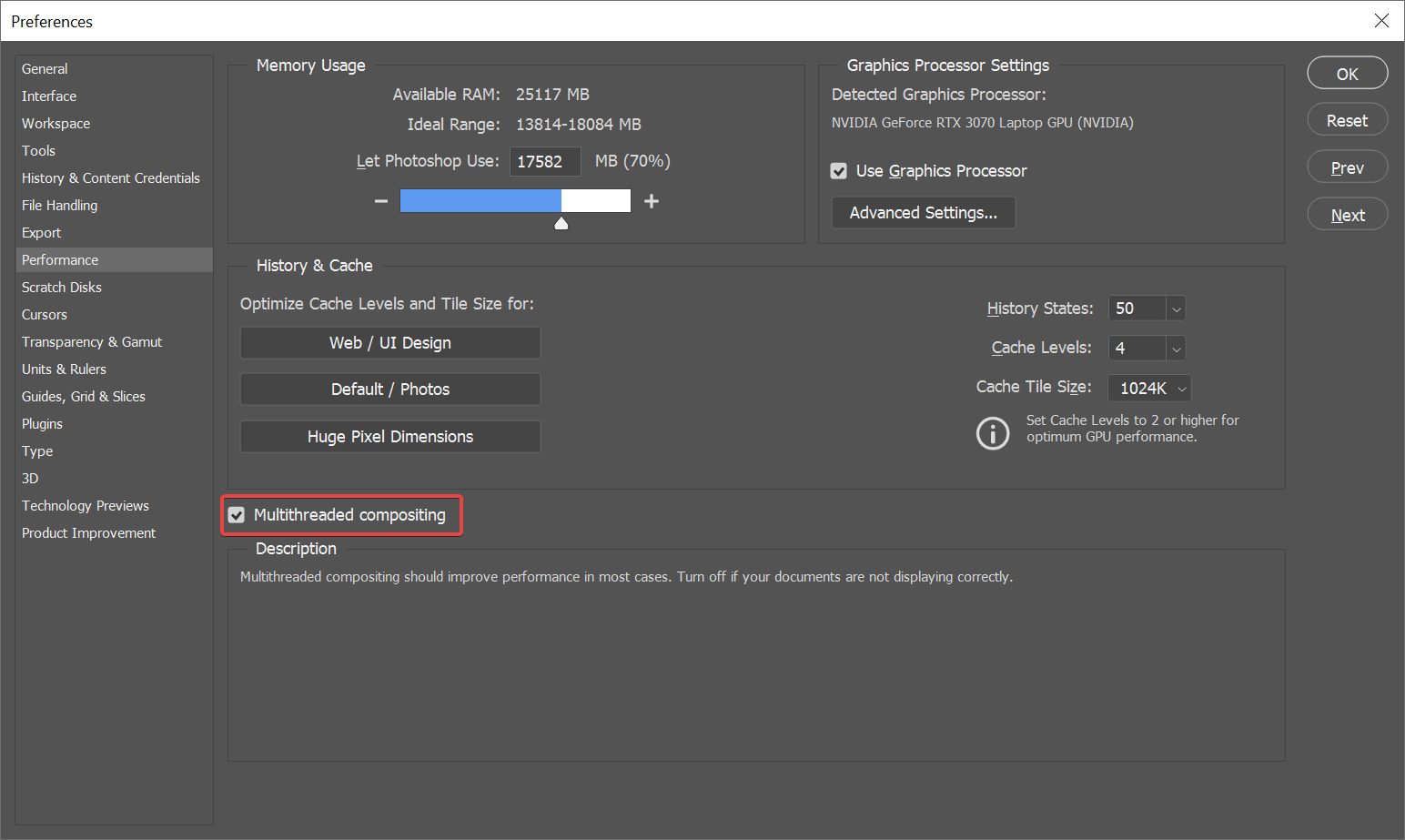

g) Make Sure You're Using Multithreaded Compositing

Click on the "Edit" button the top left, go down to "Preferences" and then click on "Performance."



Simply check the box in front of the highlighted "Multithreaded Compositingoption, and you will start using this new function.



Restarting Photoshop to make sure that the change in setting has been put into effect.

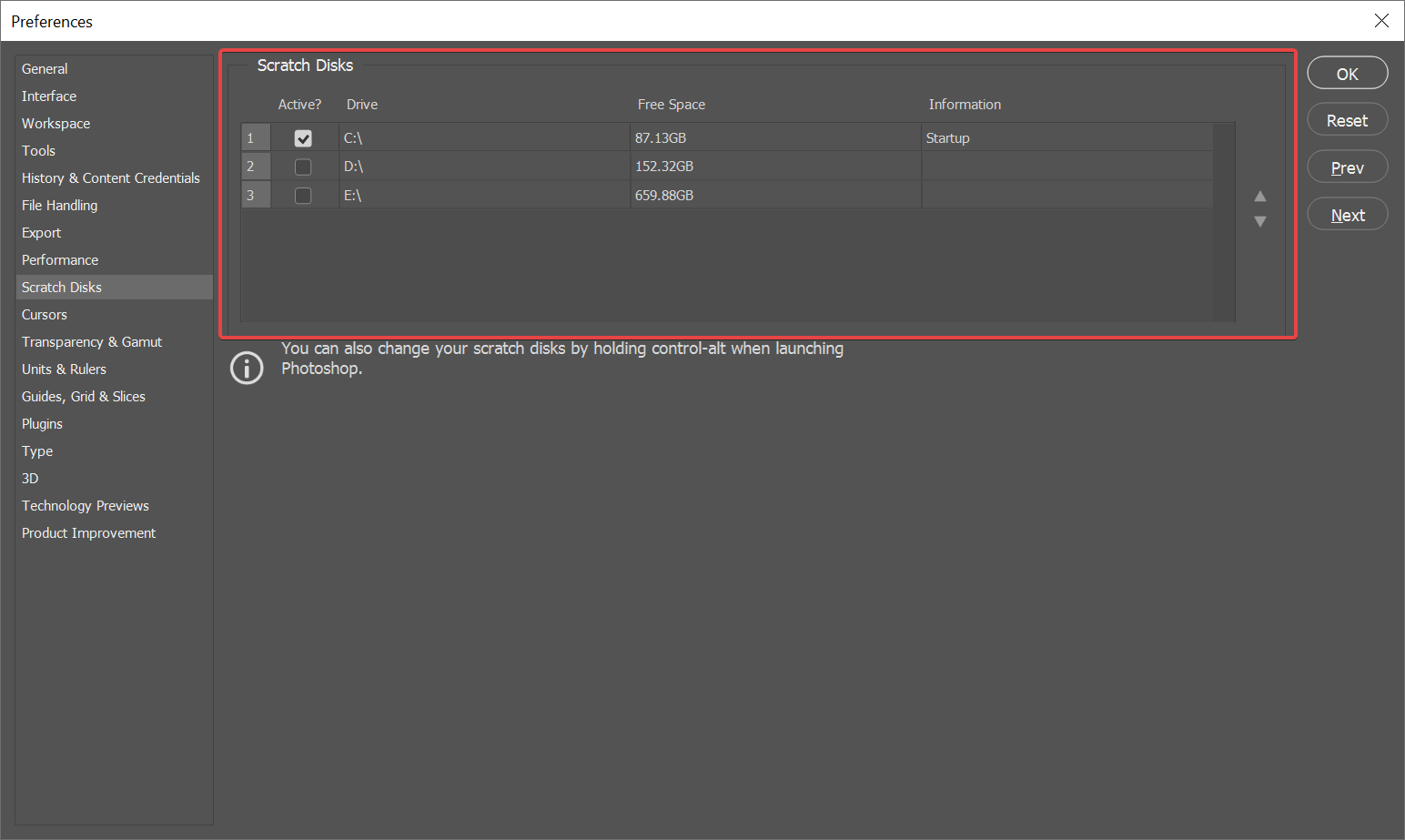

h) Make Sure That Your Scratch Disks Use Fast SSDs and Arent Full

Click on the "Edit" but on the top left, go down to "Preferencesand then click on "Scratch Disks."



Make sure your scratch disk is on a fast SSD with at least 50 100 GBs of free storage.
